JDD-PPS expandable braided sleeving is made of PolyPhenylene Sulfide (PPS) monofilament compliance with UL94 V-0. It is commonly used in high temperature environments. It has high abrasion resistance, chemical resistance, high temperature stability, low moisture absorption, excellent dimensional stability.
Application:
It is used mainly in automotive, railways, aerospace, telecom and military where are required high flame-retardant and high temperature resistance.
Technical data:
●Material: PPS (polyphenylene sulfide)
●Working temperature: -70℃~ +200℃
●Melting point: 285±10℃
●Flammability: UL94 V-0
●Color: Black, nature
●Cutting tool: Hot Knife
●Other feature: acids, solvents and fuels resistance
Dimensions:

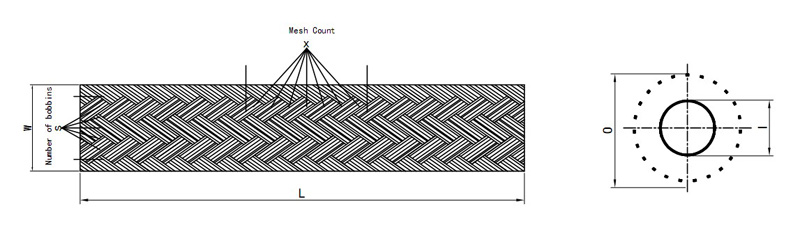

| Part No. | Nominal size (W) | Expandable Range | Packing (L) | ||
| Inch | mm | Min.(I) mm | Max.(O) mm | Standard spool | |
| PPS-003 | 1/8'' | 3 | 1 | 6 | 1000 m |
| PPS-006 | 1/4'' | 6 | 3 | 9 | 500 m |
| PPS-008 | 5/16'' | 8 | 5 | 16 | 350 m |
| PPS-010 | 3/8'' | 10 | 7 | 19 | 350 m |
| PPS-012 | 1/2'' | 12 | 8 | 24 | 350 m |
| PPS-016 | 5/8'' | 16 | 10 | 27 | 250 m |
| PPS-019 | 3/4" | 19 | 14 | 30 | 200 m |
| PPS-025 | 1" | 25 | 18 | 35 | 200 m |
| PPS-032 | 1-1/4" | 32 | 20 | 50 | 150 m |
| PPS-038 | 1-1/2" | 38 | 30 | 60 | 100 m |
| PPS-045 | 1-3/4" | 45 | 35 | 75 | 100 m |
| PPS-050 | 2" | 50 | 40 | 80 | 100 m |
| PPS-064 | 2-1/2" | 64 | 45 | 105 | 100 m |
| PPS-076 | 3" | 76 | 64 | 120 | 100 m |
Notes:
1. Nominal size indicates the flat width.
2. This sleeving has expandable character, the following sizes are covered by the nearest:
16mm=15mm, 19mm =20mm , 32mm =30mm , 38mm=40mm, 51mm=50mm.
3. Special packing, sizes can be supplied upon request.
4. All numerical data are average or typical values, not including customized sizes.
